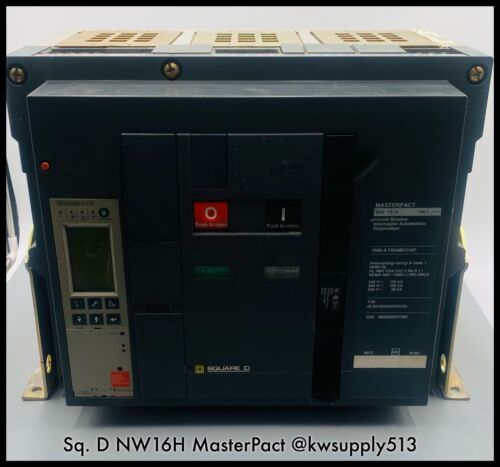

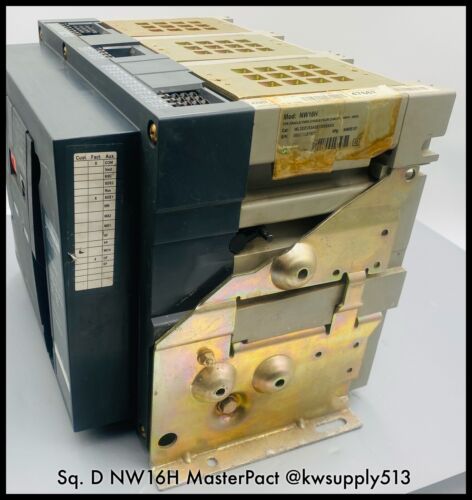

You are bidding on the following Used, Seller Refurbished Tested Square D Masterpact Series NW16H

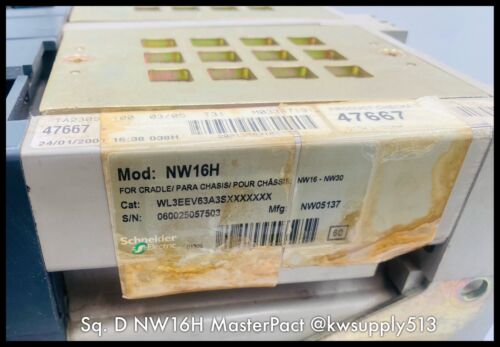

Square D Catalog# WL3EEV63A3SXXXXXXX NW Circuit Breaker
NW16H

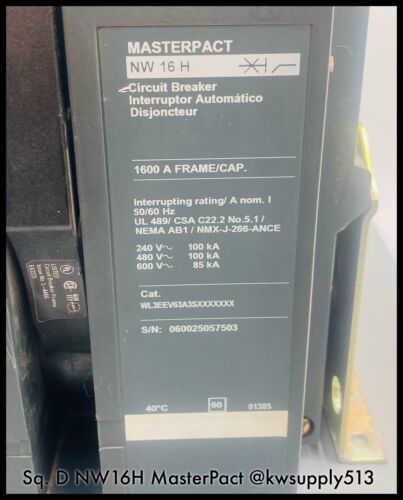

1600A Rating Sensor100/100/85 kA @ 240/480/600 VAC50/60 HzUL 489/ CSA C22.2 No.5.1/ NEMA AB1/ NMX-J-266-ANCE

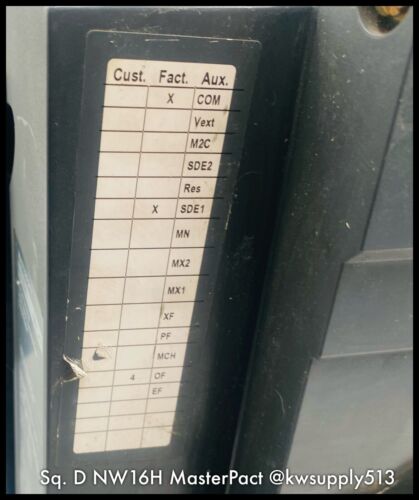

Catalog Break Down:W ~ 3 Pole NW - 115MM Pole Spacing, 3200A Frame Max ANSIL ~ Square D UL & CSA & NOM Standard3 ~ Interrupting Rating of 100/100/85 kA @ 240/480/600 VACE ~ 1600A FrameE ~ 1600A Sensor & Rating Plug V ~ Fixed 2 Hole RCTV Top & Bottom63 ~ Micrologic 5.0P LSI ELUA ~ UL Plug A3 ~ Mod Bus COMMS.S ~ No PCM 4 Form C NW Auxiliaries X ~ No Spring Charging Motor MCHX ~ No Shunt Trip MXX ~ No Closing Coil X ~ No Electronic ResetX ~ No Electrical AccessoriesX ~ No Mechanical AccessoriesX ~ No Additional Accessories
Each NW Breaker is Cleaned, Inspected, and Shipped Tested with 90-Day Warranty
Do you need this Circuit breaker Modified? Message us your catalog# to see if we can assist.
Please look at our detailed pictures and Message us for questions, other needs or find us on the web. We have other ways to find items to fulfill orders.Item must ship via freight on a pallet/crate. We can assist with shipping once ordered.
