Square D

1600A NW16H1 Circuit Breaker-WA4EER64A3CXXXWXJA

1600A NW16H1 Circuit Breaker-WA4EER64A3CXXXWXJA

$8,995.00 USD
$8,995.00 USD
Sale Sold out

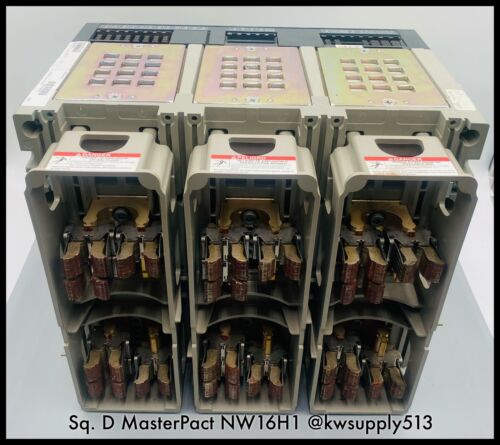

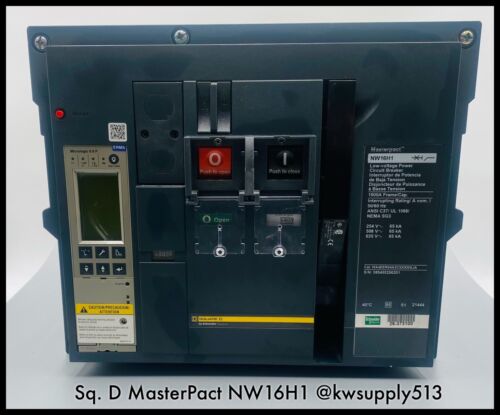

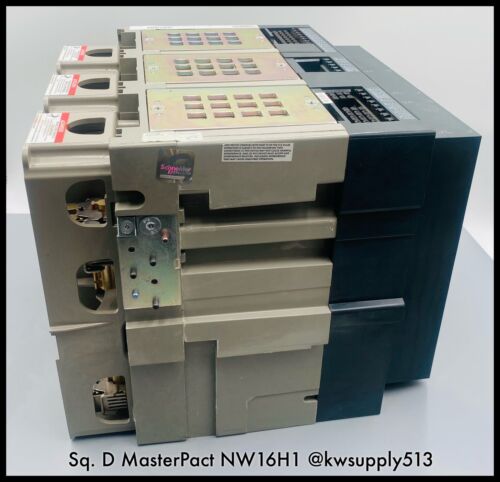

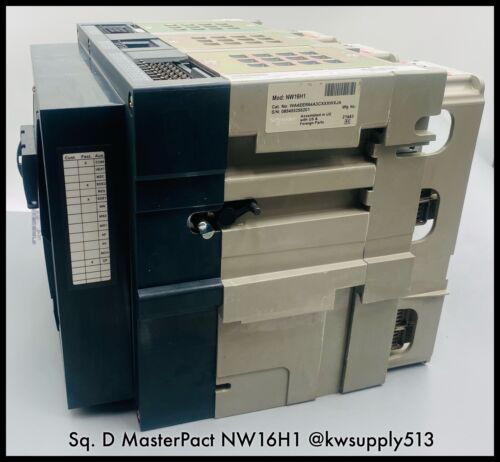

You are bidding on the following Used, Seller Refurbished Square D Masterpact Series NW16H1

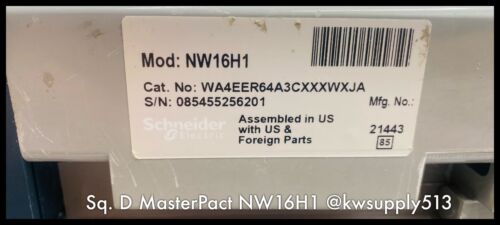

Square D Catalog# WA4EER64A3CXXXWXJA NW Circuit Breaker
NW16H1
1600A Rating Sensor

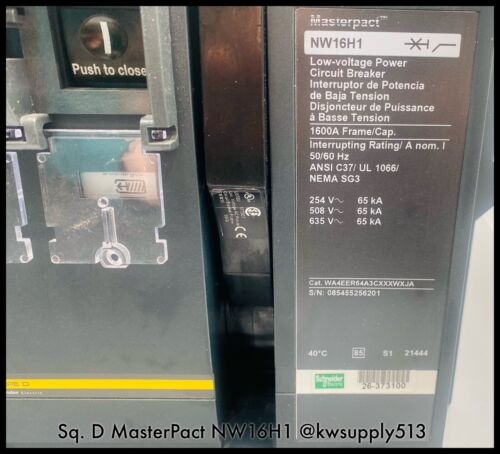

65kA @ 254/508/635 VAC
50/60 Hz
ANSI C37/ UL 1066/ NEMA SG3

Catalog Break Down:
W ~ 3 Pole NW - 115MM Pole Spacing, 3200A Frame Max ANSI
A ~  Square D ANSI Standard
4 ~ Interrupting Rating of 65kA @ 254/508/635 VAC
E ~ 1600A Frame
E ~ 1600A Sensor & Rating Plug
R ~ Drawout Breaker
64 ~ Micrologic 6.0P LSIG ELU
A ~ UL Plug A
3 ~ Mod Bus COMMS.

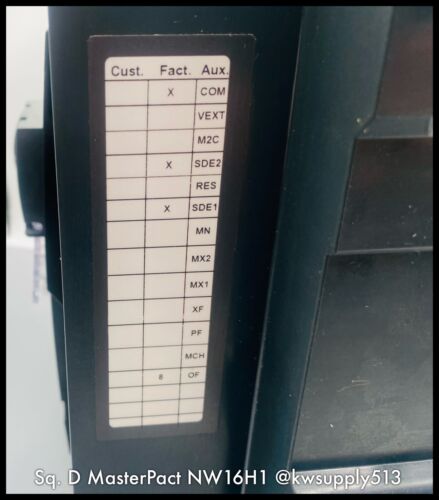

C ~ No PCM 8 Form C NW Auxiliaries
X ~ No Spring Charging Motor MCH
X ~ No Shunt Trip MX
X ~ No Closing Coil
W ~ Second OC Trip Switch
X ~ No Additional Electronics
J ~ Padlockable Push Button Cover & Mechanical Operation Counter
X ~ No Additional Accessories

Each NW Breaker is Cleaned, Inspected, and Shipped with 90-Day Warranty

Do you need this Circuit breaker Modified? Message us your catalog# to see if we can assist.

Please look at our detailed pictures and Message us for questions, other needs or find us on the web. We have other ways to find items to fulfill orders.

Item must ship via freight on a pallet/crate. We can assist with shipping once ordered.

Hours of Operation: M-F, 8:00-4:00 EST
