Square D

1600A NW16N Circuit Breaker-WL1EEV33A9CHBBXACX

1600A NW16N Circuit Breaker-WL1EEV33A9CHBBXACX

$9,750.00 USD
$9,750.00 USD
Sale Sold out

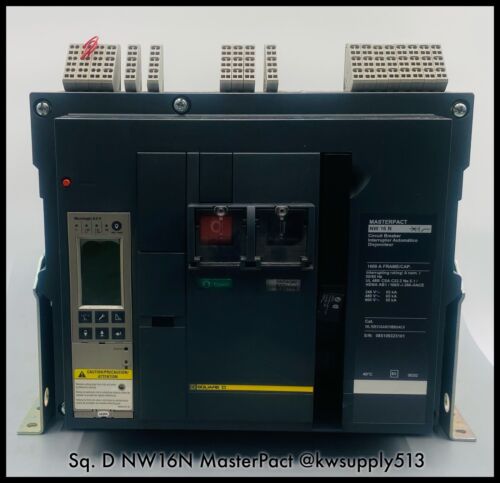

You are bidding on the following Used, Seller Refurbished Tested Square D Masterpact Series NW16N

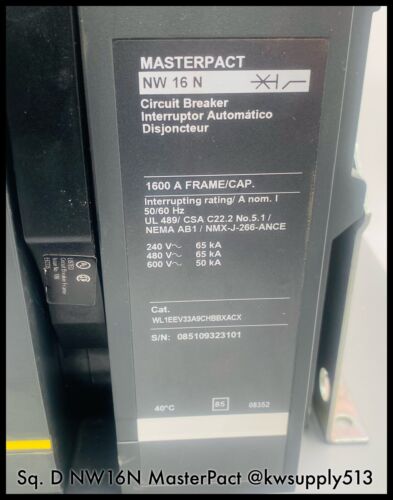

Square D Catalog# WL1EEV33A9CHBBXACX NW Circuit Breaker
NW16N
1600A Rating Sensor
65/65/50 kA @ 254/508/635 VAC
50/60 Hz
UL 489/ CSA C22.2 No.5.1/ NEMA AB1/ NMX-J-266-ANCE

Catalog Break Down:
W ~ 3 Pole NW - 115MM Pole Spacing, 3200A Frame Max ANSI
L ~  Square D UL & CSA & NOM Standard
1 ~ Interrupting Rating of 65/65/50 kA @ 240/480/600 VAC
E ~ 1600A Frame
E ~ 1600A Sensor & Rating Plug

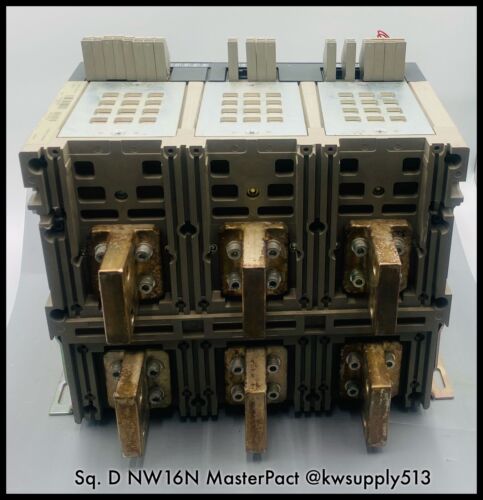

V ~ Fixed 2 Hole RCTV Top & Bottom

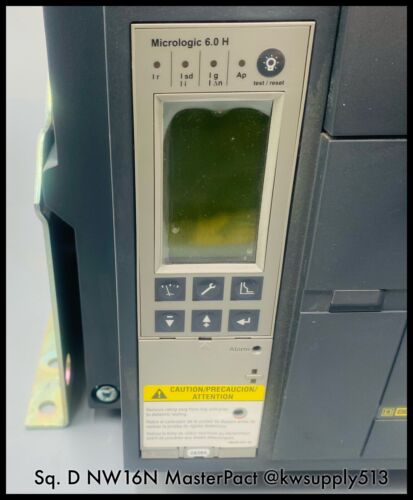

33 ~ Micrologic 5.0 LSI (Switched for Micrologic 6.0H LSIG ELU)
A ~ UL Plug A
3 ~ None COMMS.

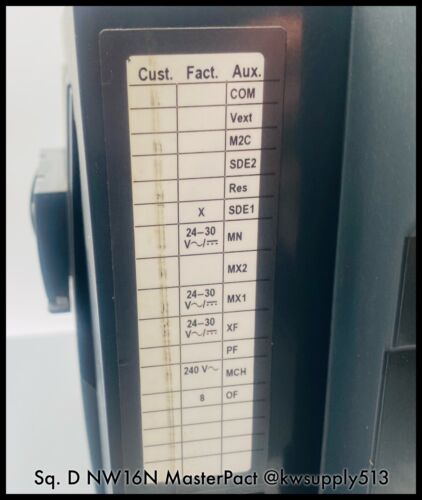

C ~ No PCM 8 Form C NW Auxiliaries
H ~ 200-240 VAC/VDC Spring Charging Motor MCH
B ~ 24-30VAC/DC Shunt Trip MX
B ~ 24-30VAC/DC Closing Coil
X ~ No Electronic Reset
A ~ 24-30 VAC/DC Instantaneous Under voltage
C ~ Padlockable Push Button Cover
X ~ No Additional Accessories

Each NW Breaker is Cleaned, Inspected, and Shipped with 90-Day Warranty

Do you need this Circuit breaker Modified? Message us your catalog# to see if we can assist.

Please look at our detailed pictures and Message us for questions, other needs or find us on the web. We have other ways to find items to fulfill orders.

Item must ship via freight on a pallet/crate. We can assist with shipping once ordered.

Hours of Operation: M-F, 8:00-4:00 EST
