W ~ 3 Pole NW - 115MM Pole Spacing, 3200A Frame Max ANSI
A ~ Square D UL & CSA & NOM Standard

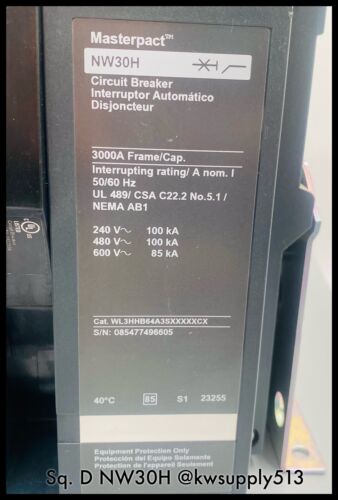

3 ~ Interrupting Rating of 100/100/85kA @ 254/508/635 VAC
H ~ 3000A Frame
H ~ 3000A Sensor & Rating Plug

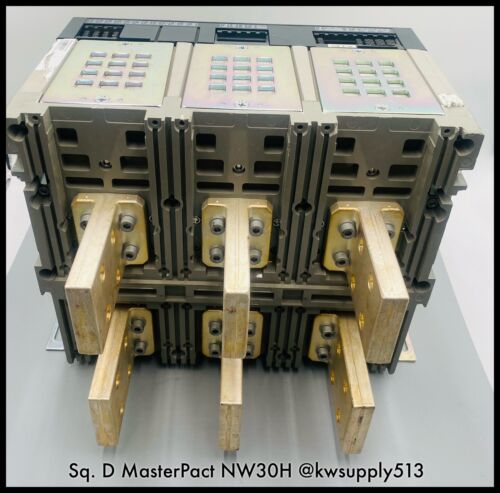

B ~ 4 Hole RCTV Top & Bottom

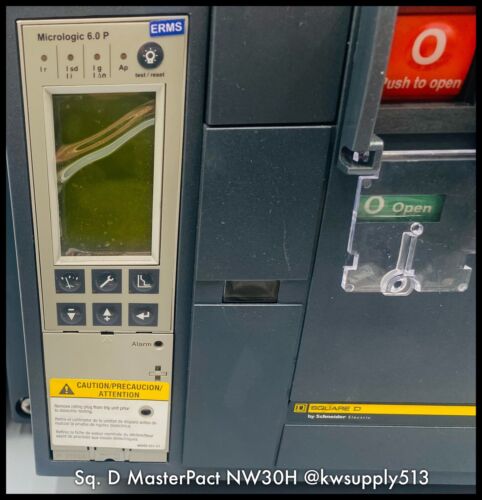

64 ~ Micrologic 6.0P LSIG ELU
A ~ UL Plug A
3 ~ Mod Bus COMMS.
S ~ No PCM 4 Form C NW or NT Auxiliaries
X ~ No Spring Charging Motor MCH
X ~ No Shunt Trip MX
X ~ No Closing Coil
X ~ No Electric Reset
X ~ No Second Shunt Trip
C ~ Padlockable Push Button Cover
X ~ No Additional Accessories
Each NW Breaker is Cleaned, Inspected, and Shipped with 90-Day Warranty
Do you need this Circuit breaker Modified? Message us your catalog# to see if we can assist.
Please look at our detailed pictures and Message us for questions, other needs or find us on the web. We have other ways to find items to fulfill orders.
Item must ship via freight on a pallet/crate. We can assist with shipping once ordered.
