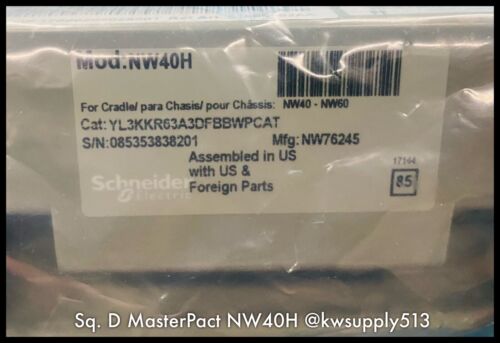

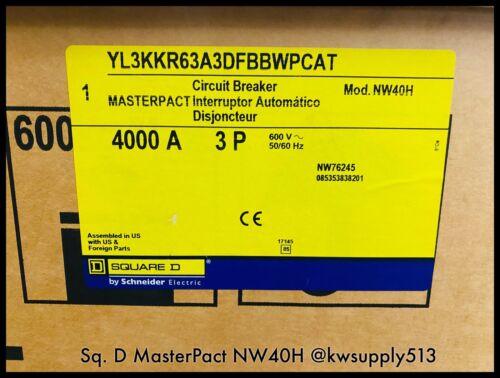

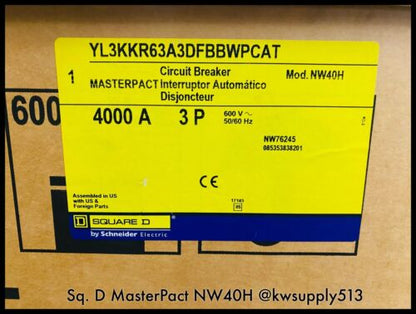

Y ~ 3 Pole NW - 230MM Pole Spacing, 6000A Frame Max
L ~ Square D UL & CSA & NOM Standard

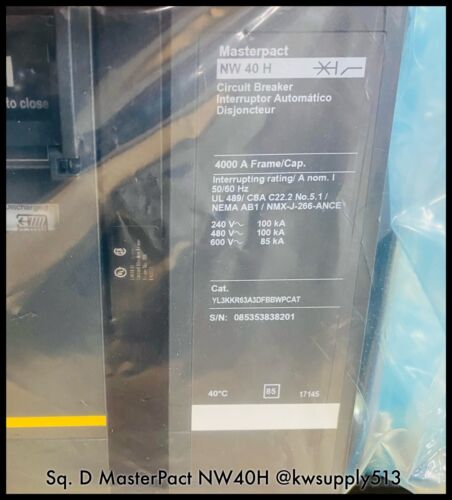

3 ~ Interrupting Rating of 100/100/85 kA @ 254/508/635 VAC
K ~ 4000A Frame
K ~ 4000A Sensor & Rating Plug
R ~ Drawout Breaker

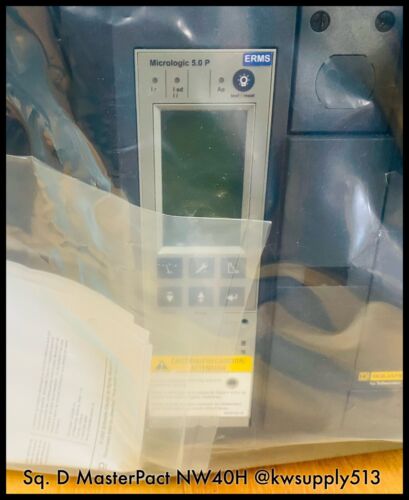

63 ~ Micrologic 5.0P LSI
A ~ UL Plug A
3 ~ Mod Bus COMMS.
D ~ No PCM 12 Form C NW Auxiliaries
F ~ 100-130 Spring Charging Motor MCH
B ~ Shunt Trip MX 24-30 VAC/VDC
B ~ 24-30 VAC/VDC Closing Coil
W ~ 2nd OC Trip Switch
P ~ 24-30 VAC/VDC Second Shunt Trip
C ~ Padlockable Push Button Cover
A ~ ABS-NVR Rated
T ~ External Voltage Sensing Wiring

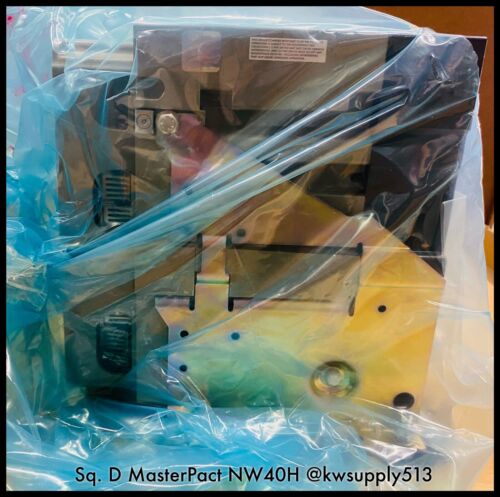

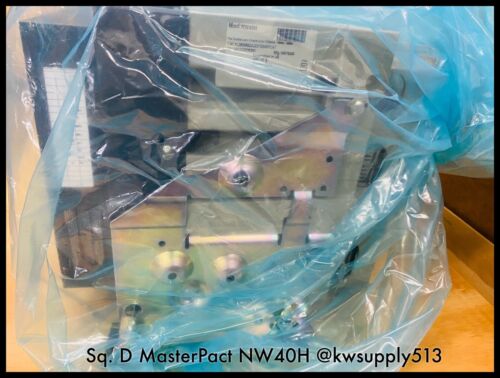

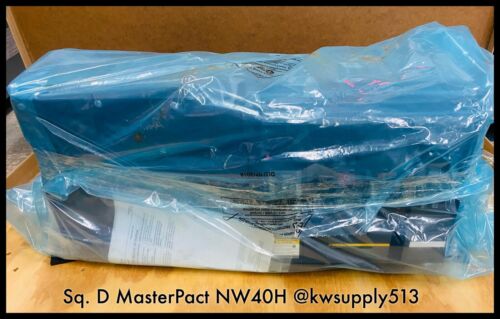

Each NW Breaker is Cleaned, Inspected, and Shipped with 90-Day Warranty
Do you need this Circuit breaker Modified? Message us your catalog# to see if we can assist.
Please look at our detailed pictures and Message us for questions, other needs or find us on the web. We have other ways to find items to fullfill orders.

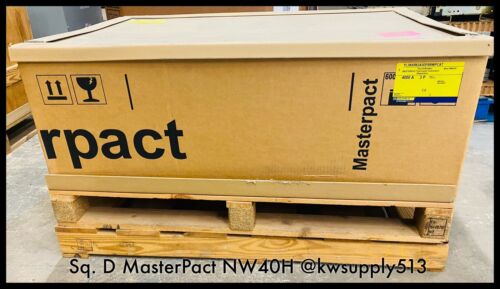

Item must ship via freight on a pallet/crate. We can assist with shipping once ordered.
