Square D

NT08L-TL7ASR64B3FFBFXXXX

NT08L-TL7ASR64B3FFBFXXXX

Regular price $5,995.00 USD
Regular price Sale price $5,995.00 USD
Sale Sold out

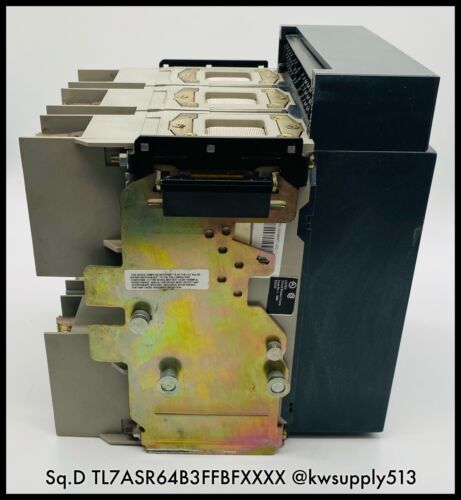

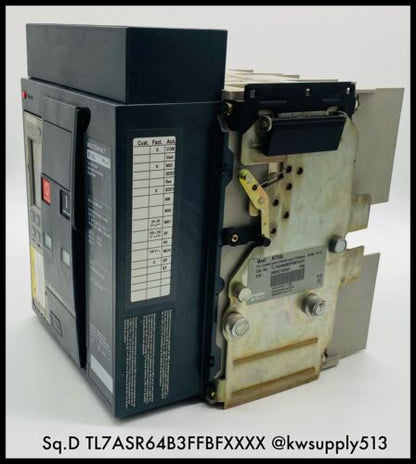

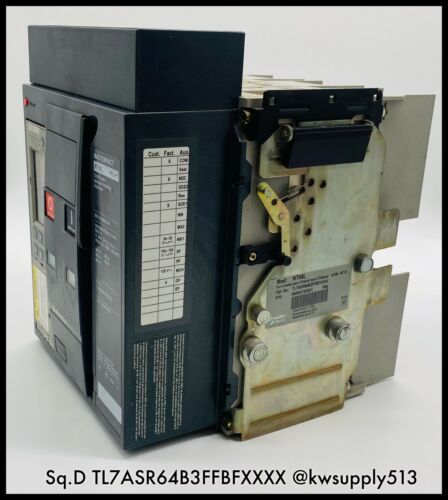

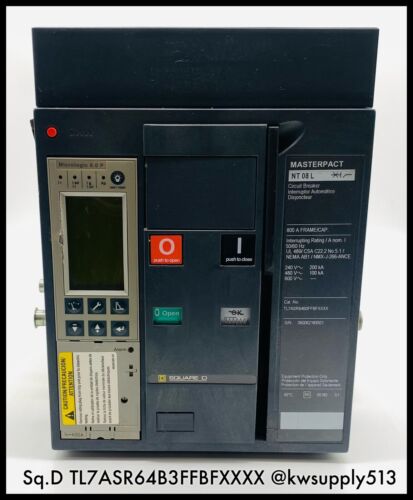

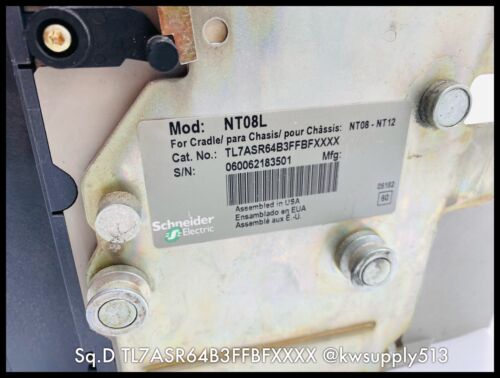

You are bidding on the following Used, Seller Refurbished Square D Masterpact Series NT08L

Square D Catalog# TL7ASR64B3FFBFXXXX NT Circuit Breaker
NT08L
400A Rating Sensor
24-30V Shunt Trip

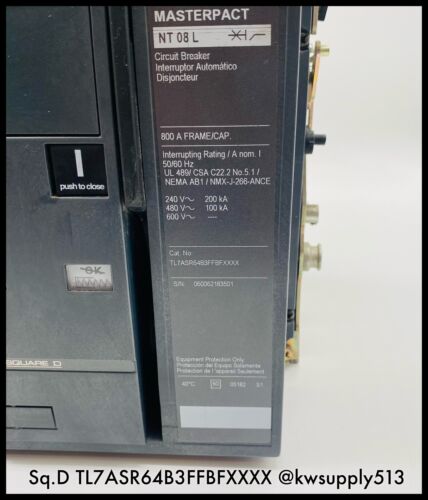

200kA / 100kA @ 240 / 480 VAC
50/60 Hz
 UL 489 / CSA C22.2 No.5.1 / NEMA AB1 / NMX-J-266-ANCE

Catalog Break Down:
T ~ 3 Pole NT - 70MM Pole Spacing, 800A Frame Max ANSI
L ~  Square D UL & CSA & NOM Standard
7 ~ Interrupting Rating of 200kA / 100kA @ 240 / 480 VAC 50/60 Hz
A ~ 800A Frame
S ~ 400A Sensor & Rating Plug

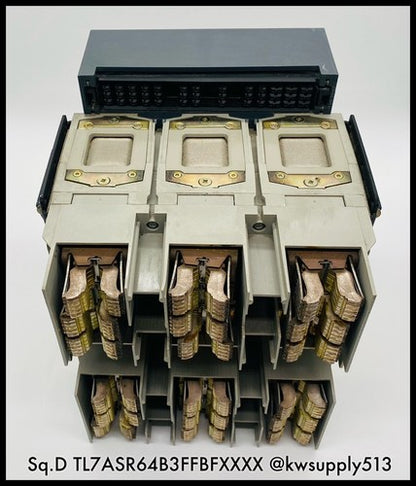

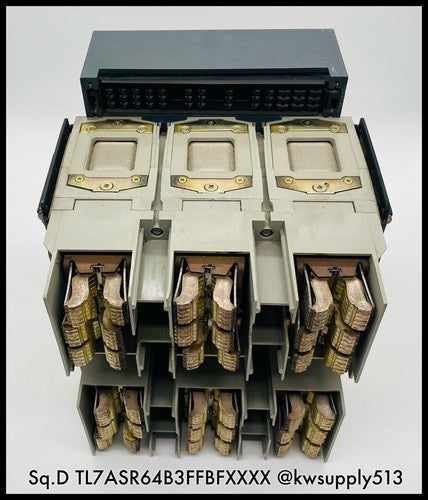

R ~ Drawout Breaker

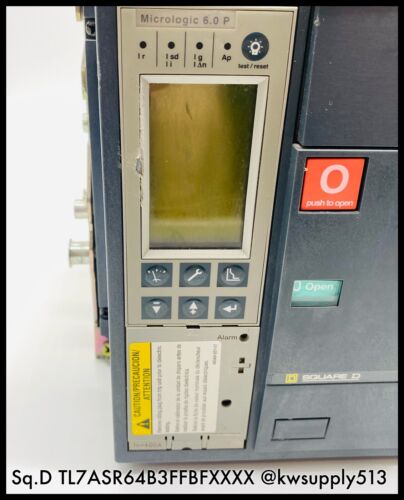

64 ~ Micrologic 6.0P LSIG
B ~ UL Plug B
3 ~ Mod Bus COMMS.
F ~ 2 PCM 4 Form C NT Auxiliaries
F ~ 100-130 Spring Charging Motor MCH
B ~ Shunt Trip MX 24-30 VAC/VDC
F ~ 100-130 VAC/VDC Closing Coil
X ~ No Electric Reset
X ~ No Second Shunt Trip
X ~ No Additional Switch/Mechanical Accessories
X ~ No Additional Accessories

Each NT Breaker is Cleaned, Inspected, and Shipped with 90-Day Warranty

Do you need this Circuit breaker Modified? Message us your catalog# to see if we can assist.

Please look at our detailed pictures and Message us for questions, other needs or find us on the web. We have other ways to find items to fulfill orders.

Item must ship via freight on a pallet/crate. We can assist with shipping once ordered.

Hours of Operation: M-F, 8:00-4:00 EST
