You are Bidding on a Power Smith T1000-C2-30-0-480-208/120 Transformer. These Items are Like New.

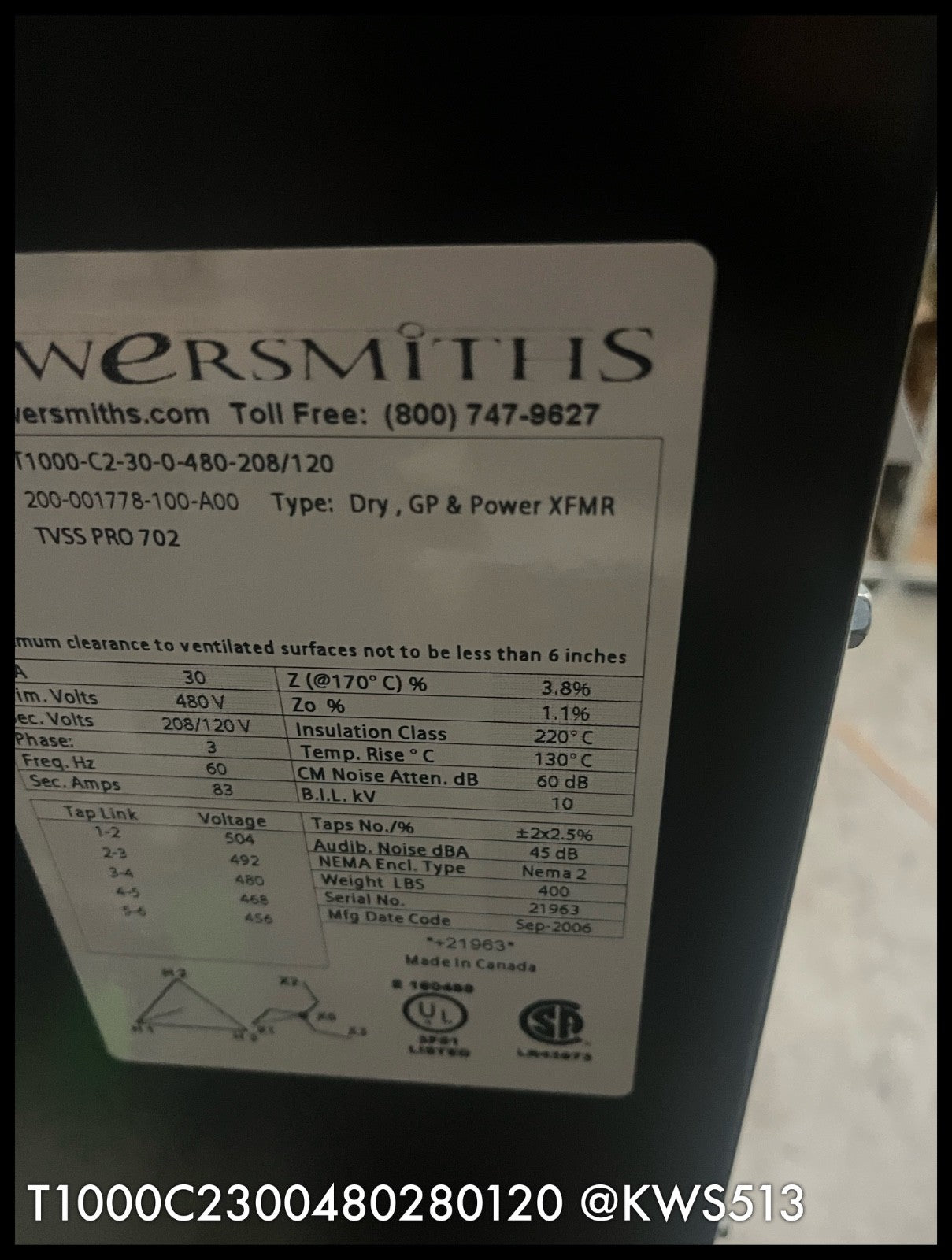

Catalog# T1000-C2-30-0-480-208/120
Part # 200-001778-100-A00
Black
Type Dry, GP, Power XFMR
Options TVSS PRO 702
KVA30
Prime Volts 480V
Sec Volts 208/120V
3Phase
60HZ
Sec Amps 83
Tap link 1-2 504, 2-3 492, 3-4 480, 4-5 468 5-6 456
Z@170'C %3.8% ZO%1.1%
Insulation Class 220'
Temp Rise C'130
CM Noise DBA 45DB
Nema Enclosed Type Nema 2
Weight 400lbs (without Skid)
Stock Pictures May Vary from the Actual Item Shipped.
Each Items are Cleaned and Inspected prior to Shipping.
